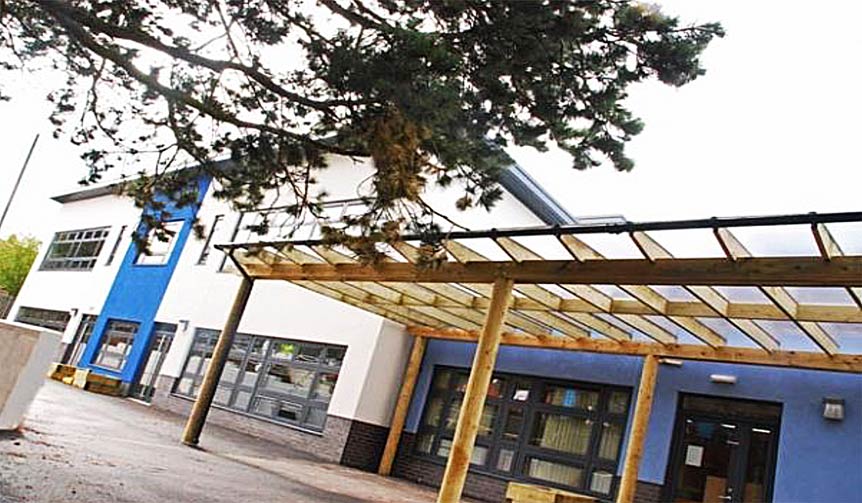

Case Study - Swan Lane First School, Evesham

0 comments


The flue system selected was a stainless steel fully welded twin wall 4 hour fire rated system with 30mm insulation.

Airtherm provided a cost-efficient solution for the client and furthermore we exceeded their expectations when our tender was some margin under the original budget offered by the Hamworthy flue division.

The flue system installed comprised of a 2.5m horizontal run and a 3m vertical, incorporating the necessary drains to allow any unwanted condense to evacuate the system.

Consultant
Worcestershire Council

Client
EMS

Sector
Education

Products
MasterFlue System

Equipment

Hamworthy PV110c

Application

Condensing

Boilers: Hamworthy
Model: Modumax Variheat PV110c
Application: Chimney / Flue system
Operating mode: Wet
Pressure: Negative / positive pressure
Working pressure: 200 Pa (product will operate 1000pa max)
Inner wall: 316L1.4404/1.457 thickness ≤ Ø250 0,4 mm
Outer wall: AISI 304/ 1.4301 thickness 0,5 / 0,6 mm
Insulation: 30mm thick Rockwool insulation
Sealant: Tri-lip 'o' type silicone ring
Fuel type: Gas

Other Applications for METALOTERM MasterFlue
Condensing boilers
Atmospheric gas-fired boilers
Gas blown boilers
Industrial ovens, large-scale establishments
Wood-fired stoves

Other Advantages of METALOTERM MasterFlue
No terminal bridges, better heat protection
High-temperature silicone sealing ring
Fast-build system without the need of sealants
High quality insulation uninterrupted from base plate to top stub


www.airtherm.co.uk

Labels: , , ,

Case Study - Grange Farm Primary School, Coventry

0 comments


Airtherm Engineering Limited has recently completed a flue dilution installation, working closely with the consultant and contractor at Grange Farm Primary School, Coventry.

The flue system selected for the project needed to be aesthetically pleasing, discreet and blend in with the building features, so a dilution system was chosen over a traditional system, which the client was in total agreement.

Airtherm provided design calculations for the project using the latest iCalc sizing package, along with compressive technical submission and Auto Cad drawings for approval prior to manufacture and ordering of the equipment.

The flue system installed comprised of a 300mm diameter fully welded dilution header, flatk Woods bifurcated epoxy coated fan, stainless steel silencers, volume control regulators and supply and discharge louvres, situated 2m from ground level to comply with Clean Air Act Memorandum.

Consultant

IDP Midlands

Client

Mitie Build

Sector

Education

Products

MasterFlue System

Equipment

Mikrofill Ethos 90kw

Application

High Efficiency Condensing

Boilers

Mikrofill -
• Model: Ethos 90kw
• Application: Flue Dilution System
• Operating mode: Wet
• Pressure: Negative / positive pressure
• Working pressure: 200 Pa (product will operate 1000pa max)
• Inner wall: 316L Stainless Steel fully welded
• Sealant: tri-lip 'o' type silicone ring
• Fuel type: Gas

Considerations
Airtherm can offer a fan dilution system to suit many appliances, from modern high efficiency condensing to gas blown and atmospheric boilers, however the principal of diluting the products of combustion is to reduce the CO² content at the discharge to below 1%, CO 50ppm & NOx 5ppm (BS6644 / IGEUP/10) in line with current legislation.

There are many design considerations that must be achieved, for instance, the correct sizing of the fan unit, dilution header, inlet and discharge plenum boxes, the location to adjacent buildings, openable windows, fresh air vent pipes and final discharge height. These can be found from the Clean Air Act memorandum, IGEUP/10 or BS6644, along with other certain provisions with respect to the final discharge height which is calculated based on the total kw input load of the plant.

Good Practice
There are two methods that can be considered when designing the dilution system -

• Air is directly taken from the outside.
• Fresh air is taken from within the plant area.

We offer a design, supply and installation service for flue dilution systems, and can offer a tailored-made package to site conditions and customer requirements.


www.airtherm.co.uk

Labels: ,

Case Study - Elmhurst Primary School, Newham, London

0 comments

Airtherm Engineering's track record of successful and efficient projects was demonstrated by the recent installation of our 'Canvent' Island kitchen canopy system at Elmhurst Primary School in Newham, London. The project involved the successful liaising between Fowler Martin, AC Preou Limited and Newham Council (consultant, contractor and client, respectively).

Project: Elmhurst Primary School – Newham, London

Client: Newham Council


Consultant: Fowler Martin


Contractor: AC Preou Limited


Installation: August 2012


Product Ref: ‘CanVent’ Island Kitchen Canopy


Application: Supply & Extract Kitchen Ventilation System

Design
Airtherm Engineering Limited liaised with both the consultant and the contractor at all times, attending site meetings, providing comprehensive technical submission, including calculations and drawings for approval prior to manufacture of the equipment.

Our aim was to deliver a complete ventilation package to our client that was fully compliant with current legislation, and endeavour to exceed our customers expectations whilst fulfilling all the demands of installing our kitchen canopy, using our own qualified installation team.

Manufacture
The canopy was manufactured from 304 (En 1.4301) or 316 (En 1.4401)  stainless steel where specified and are suitably braced to prevent product distortion.


All joints are welded and polished. The island canopy was cut, punched and folded into sub sections and factory assembled by means of computer controlled seam welds, and non-visible mechanical fixings. Systems are manufactured to the strict guidelines of DW/172, British Standards and conform to HSE for commercial Kitchen ventilation.

The system ductwork was manufactured and installed  incorporating cleaning and maintenance access doors where required to fully comply with DW/144 & TR/19  standards.

Canopy Lighting
The units are designed and manufactured to deal with a wide ranging and varied commercial application, and can deal with humidity, condense rich, as well as hot and greasy environments.
These units are normally recessed into the canopy ceiling providing easy cleaning and maintenance of the unit exterior. This also helps to greatly reduce the build-up of grease and other contaminates usually associated with the commercial kitchen environment.


Recessed Incandescent Units:
•    Approved for use in commercial kitchen applications
•    Meet with guidelines for DW172 & HSE Guidelines
•    Satin finished stainless steel matching faceplates for matching hood interiors
•    Tempered prismatic glass diffusers

Fire Suppression System
The island kitchen canopy was fitted with a R102 Ansal fire suppression system which conforms to NFPA standards 17, 17a and 96 and is UL300 listed by Underwriters Laboratories Inc .

The system was supplied with nozzles, detectors, cartridges, liquid agent, fusible links, pulley tress and elbows as required for the specific commercial kitchen application at Elmhurst School.

We can undertake turn-key packages from the simply design and installation of the equipment to providing you with all necessary builders work, electrical wiring and commissioning of the complete system.

Labels: , ,

Case Study - St Bernard’s Catholic School, Birmingham

0 comments


Airtherm Engineering Limited has recently completed a flue installation, working closely with the consultant and contractor at St Bernard’s Catholic School, Birmingham. The flue system selected was the ‘Masterflue’ by Hamworthy.

Boilers: Hamworthy


Model: Modumax HE Variheat PV105


Application: Chimney / Flue system


Operating mode: Dry / Wet

Pressure: Negative / positive pressure

Working pressure: 200 Pa (product will operate 1000pa max)


Inner wall: AISI 316L1.4404/1.457 thickness ≤ Ø250 0,4 mm, ≥ Ø300 0,5 mm


Outer wall: AISI 304/ 1.4301 thickness 0,5 / 0,6 mm


Insulation: 25mm thick Rockwool insulation


Sealant: Tri-lip 'o' type silicone ring


Fuel type: Gas/Oil/Coal/Wood

Other Applications for the METALOTERM MasterFlue

Condensing boilers
Atmospheric gas-fired boilers
Industrial ovens, large-scale establishments
Wood-fired stoves

Other Advantages of the METALOTERM MasterFlue

No terminal bridges, better heat protection
High-temperature silicone sealing ring
Fast-build system without the need of sealants
High quality insulation uninterrupted from base plate to top stub

Labels: , ,

Case Study - St Gregory's RC School, Birmingham

0 comments

Airtherm Engineering has completed another installation using Nova product serving two high efficiency wall hung Mikrofil Ethos 90kw condensing boilers at St Gregory's RC School in Birmingham.

Nova is a new breed of chimney system that offers a single solution for virtually all of today's combustion requirements. Nova is a true multi-fuel / multi-application product, whether being used to serve a solid fuel stove, vent the latest high efficiency condensing appliances or Biomass wood chip / pellet stove, Nova is the product of choice. With a diameter range covering thirteen sizes, Nova covers domestic and commercial applications. Manufactured from a 316L inner liner, 25mm high density insulated annulus and a grade 304 outer case, Nova is built to last. Unlike some of our competitors, Nova is designed with a rapid fit multi-barbed twist lock jointing system.

This not only offers a fast and simplistic installation method but also a durable and strong joint allowing a free-standing height of up to 3.0 metres to be support above the last support.

When used on appliances which product high levels of condensation, such as highly efficient condensing appliances, Nova can be retrofitted with a seal to allow both positive pressure and condensate resistance up to 200Pa, based on a maximum flue gas temperature of 200°C. Nova is available in thirteen sizes, ranging from 100mm to 600mm internal diameter.


• Suitable for fully condensing applications
• Fully welded construction
• High level insulation
• High thermal resistance
• High speed twist lock jointing system to aid installation
• Without seals the product is suitable for multi fuel applications up to 450°C

Diameters: 100mm - 600mm

Construction: Twin Wall Insulated
Material: 316L stainless steel liner and 304 stainless steel outer case
Temperature: 450°C Continuous without seals 200°C with seals fitted
Pressure capability: 200Pa (P1)
Mode of operation: Negative or positive pressure

Approvals:
BS EN 1856-1 T460 N1 D V2 L50050 G(50) Nova SM
BS EN 1856-1 T600 N1 D V2 L50050 G(50) Nova SF
BS EN 1856-1 T200 P1 W V2 L50050 O(50) Nova SM c/w seals

2 hour fire rating BS476 part 20


CE Requirements:
Ventilated support components must be used where the flue gas temperature exceeds 250°C and where the flue internally passes through a combustible floor. Where used for condensing and positive pressure applications up to 200°C, seals must be utilised

• Suitable for gas, oil and multi-fuel appliances
• When used with seals, suitable for condensing and positive pressure applications up to 200Pa at 200°C
• All components are supplied complete with Locking Bands
• Strong jointing system allowing up to 3.0 metres of unsupported product above the last support
• Rapid twist lock jointing system for ease and speed of installation
• Covers both domestic and commercial applications from 100mm to 600mm internal diameter


Labels: ,

Case Study - Oakham Primary School, Dudley, West Midlands

0 comments

Airtherm have recently designed, supplied and installed a complete twin wall stainless steel flue system serving each MHS Adinox ADI LT 200 modulating boiler at Oakham Primary School in Dudley in the West Midlands.

This installation of a 10m, 3nr MHS Adinox ADI LT 200 flue for a gas condensing boiler system comprised of a twin wall insulated stainless steel pre-fabricated exhaust system, manufactured from a 0.6mm grade 316L inner liner and a 0.4mm grade 304L outer case with the 37.5mm void packed of 128kg/m3 high density insulation.

The system used gives a positive pressure resistance of up to 2KPa and a continuous high temperature capability of up to 760°C independently tested to BS 476: Part 24 for 4 hours.


All of the products used are approved and CE marked to EN 1856-1 and manufactured under a quality assurance scheme, administered by British Standards in accordance with BS EN 9001: 2008.

Airtherm Engineering Ltd only uses branded products which are synonymous with the highest quality - in this case the Dinak product range of flue, chimney and exhaust solutions - and it is this reputation that enables specifiers and contractors to use our versatile product range with total confidence

We can provide technical solutions for the specialist areas of high temperature exhaust systems, serving generators & combined heat and powder units, fan assisted, flue dilution and atmospheric applications.

Our installation teams are made up of experienced personnel that are fully trained and aware of all the necessary statutory requirements and standards for every project they undertake.

Each team member holds the correct qualifications for his or her job. All of our engineers are competent in their field and carry all necessary site certification with CSCS cards, IPATH, PASMA and scaffold towers. Our engineers strive towards excellence in each and every project they undertake.


Comprehensive Method Statements & Risk Assessment are generated for each and every project, and issued to our clients and installation team members.

Labels: ,

Case Study - King Edward High School, Edgbaston, Birmingham

0 comments

Airtherm Engineering Limited has completed a supply and installation of multiple kitchen ventilation hoods at a well-known private School in Edgbaston, Birmingham.

The main island canopy is sized at 9.0m x 3.0m, designed with a slope to feature the existing 1950s glass construction style. We have also supplied and install various other wall mounted stainless steel extract hoods connecting onto the existing ductwork arrangement.

We were given just 4 days to remove the existing hoods and install the new stainless steel kitchen canopies, and remarkably this was achieved by shear hard work from our on-site engineers.

Product Range
Our product range extends from simple condense canopies, extract only, island or wall mounted canopies, through to our air injection island systems allowing both input and extract. If required, the input air can be pre-heated for additional internal staff comfort during the cold winter months. All products can be configured to suit each individual application.

Manufacture
All canopies are manufactured from 304 (En 1.4301) or 316 (En 1.4401)  stainless steel where specified and are suitably braced to prevent product distortion. All joints are welded and polished.

Our Canopies are cut, punched and folded into sub sections and factory assembled by means of computer controlled seam welds, and non-visible mechanical fixings. Systems are manufactured to the strict guidelines of DW/172, British Standards and conform to HSE for  commercial kitchen ventilation.

Wall mounted or island canopies can be manufactured to meet almost any dimension but typically 1000mm to 8000mm long. The system ductwork is manufactured and installed to incorporate cleaning and maintenance access doors to fully comply with DW/144  standards.

Health and Safety
All of our canopy systems are manufactured to the strict guidelines of DW/172, British Standards and conform to HSE for kitchen ventilation systems. All canopies and associated components are thoroughly tested to ensure high standards to meet with our clients expectations.

Our lighting units are sealed to industry standards to prevent the ingress of moisture, grease or heat. They meet all necessary hygiene and safety requirements.

Our control panels are designed to meet our clients demands and system features available include gas detection and shut-offs, C0 and C02 detectors and fire suppression systems with a link to the building alarm system.

Labels: , ,

Case Study - Camden Academy, London

0 comments

Airtherm Engineering Limited have designed, supplied and installed a 500mm diameter stainless steel, twin wall, fully welded gas and water tight Dinak DWhp flue system serving three high efficiency Clyde condensing boilers, with a total 2.2MW output load.

The system installed comprised of a 10m horizontal run and a 26m vertical, complete with the necessary drains incorporated to allow any unwanted condense to evacuate to the system.

The system was installed back in April 2012. Working closely with BAM Construction the installation was certainly a success.

The UCL Academy will be housed in brand-new, purpose-built accommodation on Adelaide Road in Swiss Cottage, North London.

The new building is specifically designed to support the curriculum and pastoral structures that the school will offer.

The Academy’s facilities include:


• State-of-the-art science laboratories, and a science demonstration theatre for interactive lectures, experiments and talks by visiting academics from UCL;


• An engineering science suite, which will include workshops and technology and science labs (for electronics and for engineering physics) designed to give students the experience of ‘being engineers’;


• Suites of rooms for art, music and drama, including highly-equipped performance spaces;


• ‘House’ spaces, providing comfortable, welcoming places for students to eat together, and to use for informal study during breaks and before and after school.

Labels: , , ,

Case Study - Tividale Hall Primary School, Oldbury

0 comments


Working closely with Sandwell MBC, Airtherm Engineering have recently completed the new installation of a kitchen ventilation system, including a complete control solution that features a thyristor, speed regulators and gas interlock.

The existing canopy was made of a metal and glass construction which we removed from site, and a stainless steel wall mounted extraction canopy was designed and installed in it's place, complete with a provision for tempered make-up air.

The project had a very tight schedule, however, our expert installation team ensured the system was fully operational prior to the School kitchen re-opening on Friday 31st August 2012.

Canopy Type:
3- Sided Stainless Steel Extract Unit c/w separate supply air)

Canopy Size:
1No. 3600mmL x 1450mmW x 500mmD

Canopy Lighting:
2off 1200mm Long Fully Recessed Lights


Canopy Construction:
The unit shall be manufactured entirely from 20swg (1.22mm thick), type 304 stainless steel. All visible surfaces shall be ultra-fine grain satin polished to 280 grit, and polythene protected. The Canopy shall be cut punched and folded into sub sections and factory assembled by means of computer controlled seam welds, and non-visible mechanical fixings. All metal edges shall be rolled smooth and be free from any sharp edges or projections. Canopy lower edge shall be formed into a full perimeter condensation channel with inclined internal elevation to simplify cleaning requirements. Purpose of the canopy is to eliminate heat and contaminant from the equipment below. The canopy shall comply with the food safety act 1990, and in accordance with DW172.

Allowances:
a) High efficiency stainless steel grease eliminator baffles cells.
b) Grease control system with removable drawers.
c) Factory fitted duct connection collars.
d) Twin fluorescent recessed luminaries manufactured to IP65, steam heat and grease-proof to provide and average illumination level of 500 lux upon the working plane below. All pre-wired to junction box situated using heat resistant flex cable.
e) Galvanised ductwork to DW 144 HVCA standards allowing for single wall 0.8mmthk.
f) 2No short cased Elta fans, single phase supply C/w ancillary components & speed controllers.
g) 20kw heater battery & control system
h) 2No 150mm x 50mm x 2000mm high stainless steel support columns located either end of unit.
i) 1No 3600mm long x 220mm wide stainless steel rear valance to enclose pipes / services.

Installation:
All of our air supply and extraction systems are designed, manufactured and comprehensively tested to meet all of the necessary industry requirements.

Our canopy installation teams are made up of experienced personnel, fully trained in and aware of all the latest statutory requirements and standards for each project they undertake.

Each team member holds the correct qualifications (CSCS, IPATH, height awareness, fire assessment, access towers etc) for his or her job.

Lighting:
Our lighting units are sealed and industry approved to prevent the ingress of moisture, grease or heat. They meet all the necessary hygiene and safety requirements as outlined by modern industry standards.


Controls:
We offer a range of control panels to handle our client’s demands. Control system features available include gas detectors and shut-offs, CO and CO² detectors and fire suppression systems.

Canvent Canopy Solutions:
Our extensive range of commercial kitchen canopies are designed for use in a wide variety of commercial applications from schools, restaurants, nursing homes and other institutional buildings. Our canopies are manufactured from 304 (En 1.4301) or 316 (En 1.4401) where specified, all products are suitably braced to prevent product distortion, and all joints are welded and polished.

All of our canopy systems are manufactured to the strict guidelines of DW/172, British standards and conform to HSE for kitchen ventilation systems. All canopies and associated components are thoroughly tested to ensure high standards to meet with our clients expectations.

Our product range extends from simple condense canopies, extract only island or wall mounted canopy, through to our air injection island systems allowing both input and extract, all to suit configurations for each individual application. If required the input air can be pre-heated for additional internal comfort within the winter months. Wall mounted or island canopies can be manufactured to meet almost any dimension but typically 1000mm to 8000mm long.  The system ductwork is manufactured and installed to incorporate cleaning and maintenance access doors to fully comply with DW /144 ductwork standards.

Typical Canvent Systems:

•           Condense Canopy
•           Dishwash Canopy
•           Wall Mounted
•           Extract and Supply
•           Peripheral Extract
•           Induction

Canvent Systems can include the following features:

•           Supply / Extract
•           Fully recessed light fittings
•           Grease control / drainage system
•           Odour abatement Control
•           Heater Batteries
•           Heat Recovery
•           Fire Suppression Systems
•           Gas interlock
•           Control system/Fire interlock
•           AHU / Fans / Silencers / Filters
•           Galvanised ductwork / Fire Rated ducting
•           Service Distribution Units
•           Stainless Steel Supporting Columns
